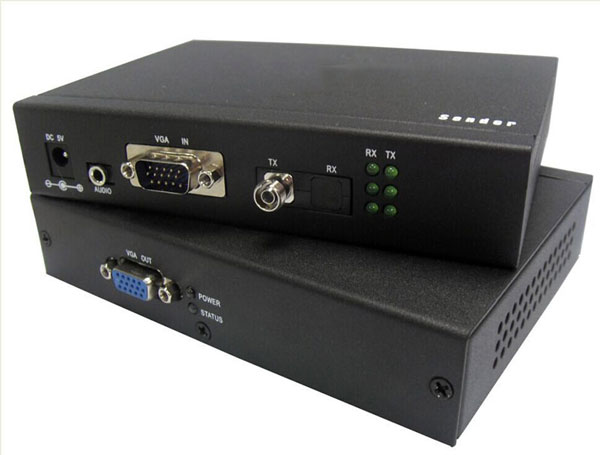

RGBHV|VGA Fiber Optic Transmission System
Overview
Features
- All-digital, uncompressed, high-definition optical transmission
- Compliance with the VGA standard protocol
- Support Independent analog audio
- Automatic identification and configure various display modes
- The highest resolution to 1080P @ 60Hz, and compatible with downward resolution
- Single / multi-mode fiber transmission
- Built-in ESD protection circuitry, can effectively prevent electrostatic damage
Specifications
|
Operating Temperature Range |
-5 to +70°C |
|
Operating humidity range |
5 to 90 % RH (no condensation) |
|
Input and output video signal |
VGA |
|
Support Video Format |
1920*1080/60Hz,1280*1024/60Hz， 1280*768/60Hz，1280*720/60Hz, 1024*768/60Hz,800*600/60Hz, |
|
Transmission distance |
5KM-40KM The default is 5KM |
|
Input and output audio interface |
3.5MMAudio |
|
Support input and output audio formats |
44.1K,48K,96K,176K,192K |
|
Serial port baud rate |
115200 and following adaptively |
|
Input Power |
DC5V |
|
Power Consumption |
VGA Transmitter 4W VGA Receiver 4W |
|
Dimensions |
Long*Wide*High(mm)155X115X30 |
|
Package Size |
300*252*100mm |
|
Weight |
1.8kg |

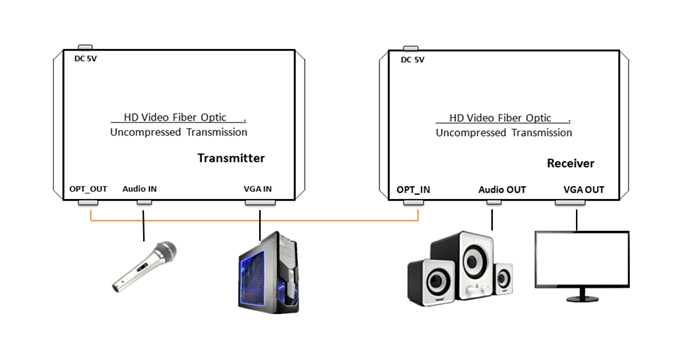

Application
